x제품 상세 정보
| 시리즈 모델 | TDL 및 TDM 시리즈 | 색상 | 블랙/실버 |
|---|---|---|---|
| 설계 | 헤비게이지 사각 스틸 튜빙 | 재료 | 고강도 알루미늄 합금(항공기 등급) |
| 사양 | 모델별로 정의됩니다. 극단적인 높이 범위와 상당한 무게 용량을 포함합니다. | 부하 용량 | 최대 안전 작업 하중 범위는 10kg(22lbs) ~ 30kg(66lbs)입니다. |
| 잠금 유형 | 안전한 결합을 위한 견고한 플립 레버 또는 대형 트위스트 잠금 장치 | 1 차 사용 | 영화, 건설 및 주요 이벤트 제작을 위해 극한의 높이에서 견고한 조명 및 장비 지원 |
| 강조하다 | Cinema-grade telescoping light stand,Industrial tripod stand for work lighting,TDL film light stand with warranty |
||
제품 설명
Cinema-Grade & Industrial Telescoping Stands: TDL for Film Lights, TDM for Work Lighting
The TDM and TDL Series represent the heavy-lift segment of telescopic support, engineered for applications where both extreme height and reliable load-bearing are non-negotiable. Constructed with robust steel profiles, these stands are built to endure the rigors of construction sites, film set operations, and large-scale outdoor events. The core of the series is its multi-section telescoping design—featuring up to 5 locking points—which allows a single stand to transform from a compact, transportable unit into a towering support structure over 5 meters tall. Models like the TDM-10 incorporate larger 30x30mm legs and a 20kg capacity for the heaviest lights, while the unique 2-section TDL-1123 offers exceptional 30kg capacity for ultra-heavy fixtures at slightly lower heights. Each stand includes pre-marked height stops for fast, repeatable setup, saving valuable time during complex rigging. This series is the foundational choice for gaffers, site managers, and rental technicians who need a dependable, scalable, and utterly solid base for their most critical lighting installations.

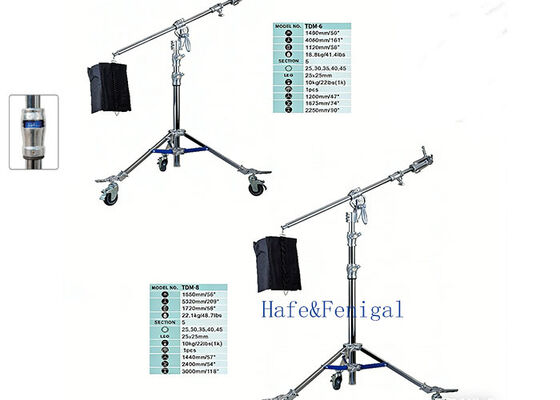

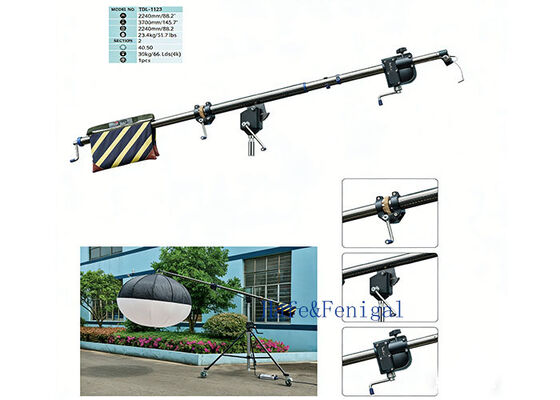

| Specification | TDM-6 | TDM-8 | TDM-10 | TDL-1123 |
| Model No. | TDM-6 | TDM-8 | TDM-10 | TDL-1123 |
| Closed Length | 1400 mm / 55" | 1650 mm / 65" | 1750 mm / 69" | - |
| Max Height | 4080 mm / 161" | 5320 mm / 209" | 5500 mm / 217" | 3700 mm / 146" |
| Min Height | 1120 mm / 44" | 1720 mm / 68" | 1780 mm / 70" | 2240 mm / 88" |
| Net Weight | 18.8 kg / 41.4 lbs | 22.1 kg / 48.7 lbs | 28 kg / 61.7 lbs | 23.4 kg / 51.7 lbs |
| Sections | 5 | 5 | 5 | 2 |
| Tube Diameter | Ø25/30/35/40/45 mm | Ø25/30/35/40/45 mm | Ø30/35/40/45/50 mm | Ø40/50 mm |
| Leg Size | 25 × 25 mm | 25 × 25 mm | 30 × 30 mm | - |
| Max Load Capacity | 10 kg / 22 lbs | 10 kg / 22 lbs | 20 kg / 44 lbs | 30 kg / 66 lbs |
| Packing Quantity | 1 pc | 1 pc | 1 pc | 1 pc |
| Footprint Diameter | 1200 mm / 47" | 1440 mm / 57" | 1600 mm / 63" | - |
| Intermediate Spread | 1875 mm / 74" | 2400 mm / 94" | 2400 mm / 94" | - |
| Max Spread Diameter | 2250 mm / 89" | 3000 mm / 118" | 3200 mm / 126" | - |
Application Scenarios
-
Large-Scale Construction & Municipal Worksites: For supporting high-mast area lighting or safety warning lights during night operations.
-
Feature Film & TV Series Location Shooting: To support heavy film lighting equipment such as large HMI lights, space lights, and green screen illumination.
-
Music Festivals & Sporting Events: Serving as side-lighting or fill-light stands, constructing temporary lighting towers around stages or within venues.
-
Airport & Port Logistics Areas: Providing temporary, high-intensity task lighting for cargo zones and tarmacs.
-
Major Exhibitions & New Vehicle Launches: Supporting high-power static lights used to illuminate large exhibits or stage subjects.
