TMFD Series Manual Crank Lift Stands: From 1.7m to 5.65m Height, Up to 100kg Capacity
무료 샘플과 쿠폰을 받으려면 연락하세요.
WhatsApp:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 제품 시리즈 | TMFD 시리즈 | 표준 색상 | 은 |
|---|---|---|---|
| 재료 | 고강도 30x30mm 정사각형 강철 튜브(모든 주요 모델에 걸쳐) | 부하 용량 | 65kg(143lbs), 80kg(176lbs) 및 100kg(220lbs) 모델 옵션 제공 |
| 기본 구조 | 하중을 받을 때 최대의 안정성을 위해 설계된 무겁고 넓은 자세의 강철 삼각대 또는 고정 베이스 | 일차 응용 | 정밀한 수동 제어로 중량급 영화, 스튜디오, 방송 조명 장비를 들어 올리고 지지합니다. |
제품 설명

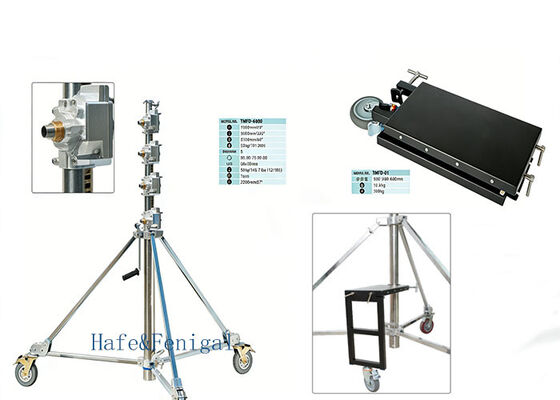

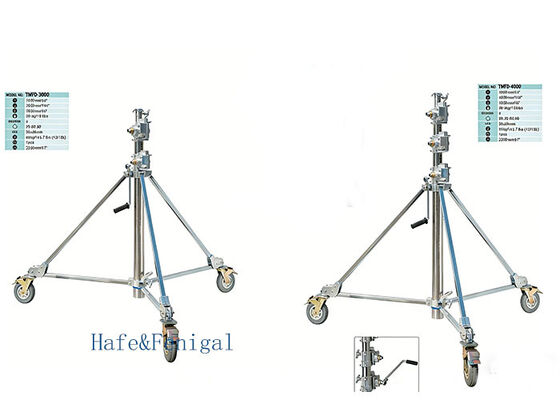

TMFD Series Manual Crank Lift Stands: From 1.7m to 5.65m Height, Up to 100kg Capacity
The TMFD Series defines the standard for heavy-duty, manual elevation in professional lighting. Engineered specifically to meet the rigorous demands of film sets, television studios, and high-end photographic environments, this comprehensive range offers a solution for every heavyweight lighting challenge. With load capacities strategically tiered from 65kg to an exceptional 100kg, these stands are built to securely hoist large HMI fixtures, expansive LED panels, and complex softbox setups. The core of each stand is a robust, smooth-operating manual crank mechanism, providing precise, incremental height control without the need for external power—an essential feature for location shoots and power-sensitive studios. Constructed uniformly with high-strength 30x30mm square steel tubing, the series features models with 2 to 5 telescoping sections, enabling working heights from a versatile 1.73 meters up to an impressive 5.65 meters. From the compact and mighty TMFD-1700 to the towering TMFD-6000, each stand delivers unmatched stability through a wide, weighted base and positive locking at preset height increments. This series is the trusted choice for gaffers and lighting directors who require reliable, precise, and powerful support for their most critical and heaviest lighting instruments.
| Model No. | TMFD-1700 | TMFD-3000 | TMFD-4000 | TMFD-6000 | TMFD-01 |
| Packed / Base Size | 980 mm / 38.6" | 1400 mm / 55" | 1550 mm / 61" | 1860 mm / 73" | 550×250×640 mm |
| Max Height | 1730 mm / 68" | 2900 mm / 114" | 4060 mm / 160" | 5650 mm / 222" | |
| Min Height | 980 mm / 38.6" | 1530 mm / 60" | 1860 mm / 73" | 2130 mm / 84" | |
| Net Weight | 28 kg / 61.6 lbs | 50 kg / 110 lbs | 60.2 kg / 132 lbs | 82 kg / 181.2 lbs | 103 kg / 227 lbs |
| Sections | 2 | 3 | 4 | 5 | |
| Leg Material / Size | 30×30 mm Steel | 30×30 mm Steel | 30×30 mm Steel | 30×30 mm Steel | |
| Max Load Capacity | 80 kg / 176 lbs (12k/18k) | 65 kg / 143.7 lbs (12/18k) | 65 kg / 143.7 lbs (12/18k) | 65 kg / 143.7 lbs (12/18k) | 100 kg / 220 lbs |
| Packing Quantity | 1 pc | 1 pc | 1 pc | 1 pc | |
| Special Dimensions | 1100 mm / 43" | 2200 mm / 87" | 2200 mm / 87" | 2200 mm / 87" | Ultra-Heavy Duty |
Application:
Film & High-End TV Production: For safely positioning 12k/18k HMI lights, Condor lights, and large diffused sources on sound stages and location.
Broadcast & Studio Lighting: As the primary support for heavy studio LED walls, key lights, and backdrop illumination in television and streaming productions.
Commercial Photography Studios: To support massive strobe systems, giant softboxes, and complex multi-light setups for automotive or fashion photography.
Live Event & Concert Touring: For ground-supported lighting towers that require secure, manual height adjustment for truss spots or wash lights.
Rental Houses & Equipment Depots: As core, high-demand inventory known for durability and ability to handle the heaviest client gear.
Company Introduction: HAFE International Limited
HAFE International Limited is a leading manufacturer and exporter of high-quality tripods and professional support solutions, based in China. With a dedicated focus on innovation, durability, and precision, we specialize in designing and producing a comprehensive range of tripods and mounts suitable for photography, videography, live streaming, and industrial applications.
Our core mission is to provide stable, reliable, and versatile support equipment to content creators, professionals, and businesses worldwide. From compact desktop stands to robust professional tripods, our products are engineered with premium materials like aluminum alloy to ensure an optimal balance of strength, portability, and performance.
Global Logistics & Delivery
We serve clients across the globe with flexible and reliable shipping options tailored to your needs:
Sea Freight, Air Freight & Land Transport to major ports worldwide.
Express Courier Services (UPS, FedEx, DHL) for fast door-to-door delivery.
DDP (Delivered Duty Paid) Specialist Lines offering hassle-free, tax-included shipping directly to your doorstep.
At HAFE, we pride ourselves on seamless end-to-end service—from product customization and quality assurance to smooth logistics and after-sales support. Whether you are a distributor, retailer, or business user, we are committed to being your trusted partner in professional support solutions.
Empower your vision with stability. Choose HAFE International Limited.
