TCOB Series Cine-Grade Steel Light Stand with High-Grade Construction Dual Use and Detachable Legs
제품 상세 정보
| 최대 높이 범위 | 2.2m ~ 4.07m(모델에 따라 다름) | 높이 범위 | 785mm ~ 2,830mm 조정 가능 |
|---|---|---|---|
| 최소 높이 | 245mm / 9.6" | 높이 조절 가능 | 다단식 텔레스코픽 구조 |
| 조정 범위 | 20mm ~ 320mm 조정 가능 | 접힌 높이 | 970mm/38" ~ 1910mm/75.2" |
| 스레드 호환성 | 1/4”-20 & 3/8”-16 | 특별한 기능 | 볼 헤드 / 핫슈 / 회전 클립 |
| 기본 유형 | 삼각대 | 레그부 | 3 |
| 순중량 | 18.4 킬로그램 | 높이 조정 | 텔레스코픽 라이저 디자인 |
| 확산 직경 | 300mm | 주요 특징 | 손쉬운 높이 조절 |
| 유형 | 접이식 | 재료 | 고급 강철 구조 |
| 부하 용량 | 최대 20kg(모델에 따라 다름) | 최대 높이 | 2,810mm / 116" |
| 무게 | 4.73kg(10.5파운드) | 유효 탑재량 | 18kg(39.8파운드) |
| 강조하다 | TCOB cine-grade steel light stand,dual use detachable legs light stand,high-grade construction tripod light stand |
||
제품 설명
TCOB Series | Cine-Grade Steel Light Stands
Uncompromising Stability. From Set Floor to Studio Grid.
Where precision lighting meets absolute reliability. The HAFE TCOB Series delivers a purpose-built range of steel stands engineered to anchor your most critical fixtures—from low-profile floor packages to overhead combos. No plastic gimmicks. No wobble. Just brute strength, clean engineering, and the load capacity to lock down cinema cameras and heavy diffusers with total peace of mind.
Technical Specifications
| Model | Min Height | Max Height | Folded Length | Weight | Sections | Tube Ø | Leg Profile | Payload | Footprint |
|---|---|---|---|---|---|---|---|---|---|

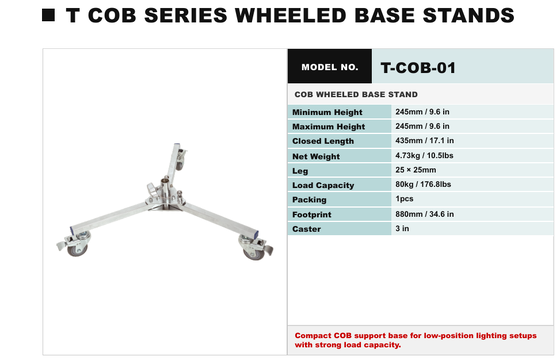

| TCOB-01 | 245 mm / 9.6" | 245 mm / 9.6" | 435 mm / 17.1" | 4.73 kg / 10.5 lbs | -- | -- | 25*25 mm | 80 kg / 176.8 lbs | 880 mm / 34.6" |
| TCOB-02 | 280 mm | 280 mm | 630 mm | 7.86 kg | -- | -- | 30*30, 25*25 mm | 20 kg | 1220-1920 mm |
| TCOB-20" | 820 mm / 32.3" | 1570 mm / 61.8" | 610 mm / 24" | 7.0 kg / 15.5 lbs | 3 | 25, 30, 35 mm | 25*25 mm | 18 kg / 39.8 lbs | 880 mm / 34.6" |
| TCOB-30" | 1075 mm / 42" | 2195 mm / 86" | 900 mm / 35" | 6.74 kg / 14.96 lbs | 3 | 25, 30, 35 mm | 25*25 mm | 18 kg / 39.8 lbs | 880 mm / 34.6" |

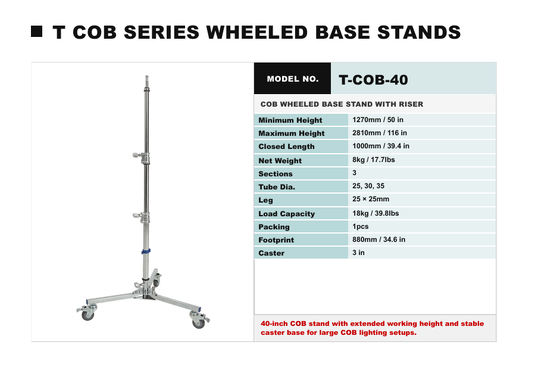

| TCOB-40" | 1270 mm / 50" | 2810 mm / 116" | 1000 mm / 39.4" | 8 kg / 17.7 lbs | 3 | 25, 30, 35 mm | 25*25 mm | 18 kg / 39.8 lbs | 880 mm / 34.6" |
The HAFE Solution
Three distinct architectures. One unified vision. Whether you're building a dolly-hugging diffusion setup or a towering backlight array, there's a TCOB stand built precisely for the task. We've eliminated the guesswork: the baby stands (01/02) act as unshakeable low-booms and overhead rigging anchors, while our 20", 30", and 40" risers form the backbone of any tungsten, HMI, or heavy LED placement. No adapter clutter. No fragile alloy compromises. Just a straightforward, steel-driven toolkit that bridges the gap between grip and lighting departments.
Why Steel Is a Creative Choice
- Vibration-Proof Locking. The sheer mass of the steel tubing dampens resonance instantly. Frame your shot while talent moves across a raised platform—zero image shift.
- Mono-Block Footprint. A consistent 880 mm base diameter across telescopic models means predictable spacing in tight grids and on crowded stages.
- Effortless Deployment. Oversized, glove-friendly locking knobs collapse the 3-section risers fast. From cart to set-ready in seconds.
- Tri-Diameter Tube Sizing. Graduated diameters (25, 30, 35 mm) on TCOB-20", 30", and 40" maximize top-stage stability without adding bulk.
- Payload You Can Trust. A rated 18 kg / 39.8 lbs on telescopic stands—and a staggering 80 kg / 176.8 lbs on the TCOB-01 baby plate—means you can safely fly a loaded 4*4 frame, a fully dressed Skypanel, or a Combo head with glass.
Where It Fits Into Your Workflow
| Scenario | Recommended Model |
|---|---|
| Rolling low-angle key light beneath a camera dolly | TCOB-01 (80 kg static load) |
| Heavy overhead butterfly frame rigging | TCOB-02 (1220-1920 mm adjustable footprint) |
| Standard interview key / backlight placement | TCOB-20" (820-1570 mm) |
| High-power HMI or spotlight throw from set wings | TCOB-30" (1075-2195 mm) |
| Studio catwalk punch, elevated diffusion, or towering edge light | TCOB-40" (1270-2810 mm) |
Structure Comparison: Steel vs. Alloy
| Attribute | TCOB Steel Stands | Typical Aluminum Stands |
|---|---|---|
| Center of gravity feel | Grounded, low-resonance | Light top, prone to vibration |
| Long-term joint wear | Minimal; steel resists galling | Noticeable slop after repeated use |
| Wind/external buffeting response | Dampens instantly | Transfers energy to light fixture |
| Carrying weight penalty | Moderate, planned-in | Lighter, but often requires additional sandbagging |
Takeaway: If your light is expensive, the stand underneath it should be heavier. Mass isn't a burden—it's insurance.
FAQ
Q: What is the actual working load I should assign?
A: For any stand in a studio environment, apply a standard 5:1 safety factor. Our listed 18 kg capacity already reflects a conservative rating; however, for personnel safety, always sandbag the base and never exceed one-fifth of the stated max when flying overhead equipment.
Q: Why does the TCOB-01 have a minimum and maximum height that are identical?
A: The TCOB-01 is a fixed-height, ultra-low baby stand. Its design eliminates riser columns entirely to provide a single 245 mm mounting point capable of holding 80 kg statically. Ideal for direct camera bed mounts or dead-bottoming a heavy diffusion frame.
Q: Are the 30*30 mm legs and 25*25 mm tubes compatible with standard grip heads?
A: Absolutely. The TCOB-02 combo leg set and all telescopic models use industry-standard 25 mm (1") junior receivers and spigots. Your existing grip heads and clamps will mount without reducers.
Q: Do the stands include leveling legs?
A: The TCOB-01, 20", 30", and 40" ship with fixed profile steel legs, delivering maximum rigidity. If you require self-leveling for uneven terrain, a low-profile leveling head can be mounted on the top stage without compromising payload.
Why Filmmakers Choose HAFE Over Commodity Stands
We build rigging equipment that doesn't interrupt the shot. Every TCOB stand is welded, inspected, and load-tested in-house. The finish is a multi-stage powder coat that survives cable friction, truck pack-ins, and sudden rain on location. When you reach for a HAFE stand, you're not checking its age or praying the collar holds—you're focusing on the frame.
- No hidden plastic bushings where strength matters.
- Steel leg profiles that lock with a reassuring, deliberate clamp action.
- A design language built for rental houses and touring crews—stackable, strip-down simple, and field-serviceable.
Choose the stand that works as hard as your lighting package. Choose HAFE.
