TM16 Series Steel Crank Boom Stand with High-Grade Steel Construction and Effortless Crank Operation for Extendable Counter-Balanced Boom Arm
제품 상세 정보
| 재료 | 고급 강철 구조 | 부하 용량 | 18kg ~ 80kg 범위 |
|---|---|---|---|
| 최소 높이 | 1,670mm / 66" | 최대 높이 | 3950mm / 155.5" |
| 순중량 | 8.78kg ~ 55kg | 붐 길이 | 2,500mm/98"~3,700mm/145.7" |
| 강조하다 | steel crank boom stand,extendable counter-balanced boom arm,high-grade steel light stand |
||
제품 설명
TM16 Series Steel Crank Boom Stands
Precision Lifting for Lights, Grips, and Overhead Rigging
Product Overview
When your creative vision demands perfectly placed overhead lighting or a boom arm that holds steady take after take, the TM16 Series delivers. Engineered entirely from steel and driven by a smooth crank mechanism, these stands let a single operator adjust height and boom angle effortlessly — no muscle strain, no awkward knob-tightening, just reliable, repeatable performance. Whether you're packing light for a location shoot or building out a full studio grid, the TM16 range has a configuration that fits your payload, footprint, and reach.
Technical Specifications

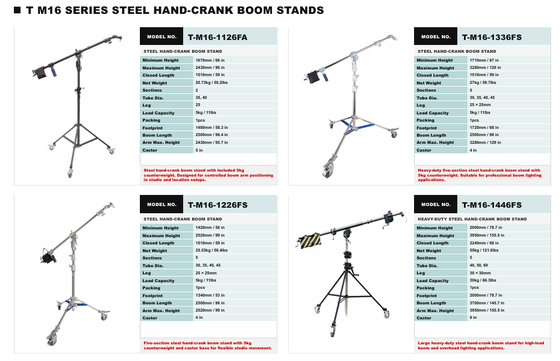

| Model | Min Height | Max Height | Folded Height | Net Weight | Sections | Tube Diameter | Leg Size | Load Capacity | Packing | Footprint | Boom Length | Boom Max Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TM16-1126FA | 1670 mm / 66" | 2430 mm / 96" | 1510 mm / 59" | 20.42 kg / 45.33 lbs | 2 | 35, 40 mm | 25 mm (round) | 5 kg / 11 lbs | 1 pc | Ø1240 mm / 49" | 2600 mm / 102" | 1800 mm / 71" |
| TM16-1226FS | 1420 mm / 56" | 2520 mm / 99" | 1510 mm / 59" | 24.50 kg / 54.39 lbs | 5 | 30, 35, 40, 45 mm | 25×25 mm square | 5 kg / 11 lbs | 1 pc | Ø1340 mm / 53" | 2500 mm / 98" | 2520 mm / 99" |
| TM16-1336FS | 1710 mm / 67" | 3280 mm / 129" | 1510 mm / 59" | 26.13 kg / 58 lbs | 5 | 30, 35, 40, 45 mm | 25×25 mm square | 5 kg / 11 lbs | 1 pc | Ø1720 mm / 68" | 2500 mm / 98" | 3280 mm / 129" |
| TM16-1446FS | 2000 mm / 78.7" | 3950 mm / 155.5" | 2240 mm / 88" | 55 kg / 121.6 lbs | 5 | 40, 50, 60 mm | 30×30 mm square | 30 kg / 66.3 lbs | 1 pc | Ø2000 mm / 78.7" | 3700 mm / 145.7" | 3950 mm / 155.5" |
| TM16-2003 | 2200 mm | 2200 mm | 1030 mm | 8.78 kg | 1 | Ø35 mm | 20×40 mm | 15 kg | 2 pcs | Ø1060 mm | -- | -- |

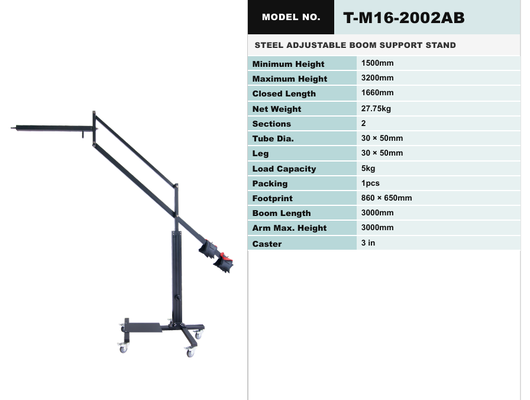

| TM16-2002AB | 1500 mm | 3200 mm | 1660 mm | 27.00 kg | 2 | Ø30×50 mm | 30×50 mm | 5 kg | 1 pc | 860×650 mm | 3000 mm | 3000 mm |
All measurements include both metric and imperial units. Load capacity refers to boom arm payload unless otherwise noted. TM16-2003 is a straight stand without boom arm — load capacity applies to the top spigot.
The HAFE Solution
Traditional light stands ask you to unlock knobs, manually lift heavy modifiers, and pray nothing slips while you tighten. That's a workflow killer, and it's unsafe. We designed the TM16 crank system to change that. A sealed worm-gear drive translates every turn of the folding crank handle into silky vertical movement. The mechanism is fully self-locking: set your height, let go, and it stays — no drift, no sudden drops. Add the extendable steel boom arm, and one person can position a key light, hair light, or overhead diffuser exactly where it needs to be, without ever climbing a ladder. That's the HAFE solution: less rigging time, more creating time.
Product Advantages
Effortless Crank Operation
The smooth, low-resistance worm-gear lift takes the labor out of raising and lowering heavy loads. Precise height dialing becomes second nature, even mid-shoot.
Heavy-Duty All-Steel Build
From the riser columns down to the leg braces, every structural component is steel. This isn't a lightweight compromise — it's a platform that stays planted and absorbs vibration even with full-length booms deployed.
Extendable, Counter-Balanced Boom Arm
On boom-equipped models, the arm extends horizontally to place lights right over your subject, while the crank adjusts overall elevation. The combination gives you infinite overhead positioning without re-rigging.
Compact Folded Profile
Despite generous working heights (up to 3950 mm / 155.5"), most models fold down to a length that fits easily in a grip cart or van. Setup and breakdown are fast, with reinforced leg hinges that maintain alignment trip after trip.
Scalable Payload & Reach
The TM16 family spans from grab-and-go 5 kg boom stands to the 30 kg capacity workhorse TM16-1446FS. You pick the muscle you need — no paying for capacity you won't use.
Applications
- Portrait & Fashion Photography - Float a key light directly above the talent with a heavy softbox, controlled by a single grip.
- Video & Content Studios - Run a top-down hair light or boom a shotgun mic over the frame without entering the shot.
- Wedding & Event Lighting - Quickly set up and fine-tune ceremony accent lights; the crank makes height adjustments polite and silent.
- Product & Still Life - Achieve precise backlight and rim light angles that only a boom arm can deliver.
- Broadcast & Film Sets - Use as a heavy-duty overhead menace arm for grid-like placement where a ceiling mount isn't available.
Structural Comparison
Understand at a glance which TM16 model matches your workflow. The series combines different riser section counts, leg designs, and boom reaches to cover a wide spectrum of professional needs.
| Model | Sections | Leg Profile | Boom Length | Boom Load | Designed For |
|---|---|---|---|---|---|
| TM16-1126FA | 2 | Ø25 mm round steel | 2600 mm | 5 kg | Grab-and-go boom stand; excellent weight-to-reach ratio |
| TM16-1226FS | 5 | 25×25 mm square steel | 2500 mm | 5 kg | Compact travel stand with surprising height and a stable square footprint |
| TM16-1336FS | 5 | 25×25 mm square steel | 2500 mm | 5 kg | Higher reach than 1226FS, still portable, ideal for over-the-top lighting |
| TM16-1446FS | 5 | 30×30 mm square steel | 3700 mm | 30 kg | Studio workhorse — handles large modifiers and heavy fixtures safely |
| TM16-2003 | 1 | 20×40 mm rectangular | N/A | 15 kg (top) | Straight stand pair; perfect for background support or static lighting |
| TM16-2002AB | 2 | 30×50 mm oversized | 3000 mm | 5 kg | Extra-wide footprint & long boom arm; demanding outdoor or high-stability setups |
Frequently Asked Questions
How much weight can the boom arm safely hold?
It depends on the model. The TM16-1126FA, 1226FS, 1336FS, and 2002AB are rated for 5 kg (11 lbs) on the boom. The TM16-1446FS steps up to a solid 30 kg (66.3 lbs). For the straight stand TM16-2003, the 15 kg rating applies to the top spigot.
Can I remove the boom arm and use the stand as a regular light stand?
Absolutely. Every boom-equipped TM16 model allows you to detach the boom arm and use the stand with a standard 5/8" stud or spigot. This gives you a straight crank-up stand whenever you need it.
Does the crank require maintenance?
The worm-gear mechanism is sealed and lubricated for life under normal studio use. We recommend keeping the riser tubes clean and occasionally wiping them down with a dry cloth. Do not oil the tubes — it can attract dust and compromise the self-locking action.
What's the best way to stabilize the stand when the boom is fully extended?
Always set the largest leg footprint possible and align one leg directly under the boom's load. We strongly recommend using counterweight sandbags on the base leg (a dedicated weight hook is built in on most models). For heavy setups, a shot bag on the opposite end of the boom also helps balance the moment.
Are replacement parts available?
Yes. HAFE maintains a full inventory of knobs, crank handles, leg braces, and boom attachments for the entire TM16 Series. Contact your local dealer or our support team directly.
Why Choose HAFE
We build support gear for image makers who cannot afford a failure on set. Every TM16 stand undergoes a multi-point inspection before it leaves our factory — welds are checked, cranks are cycled, and load tests verify published ratings. When you buy a HAFE stand, you're backed by a 5-year warranty and a global network of technicians who actually know how a worm gear works. No hollow marketing, just gear that shows up, sets up fast, and disappears behind your creative work. That's why cinematographers, rental houses, and content studios choose HAFE generation after generation.
Ready to put your lighting exactly where it belongs?
Explore the TM16 Series at an authorized HAFE dealer or get in touch with our team for a personalized recommendation.
